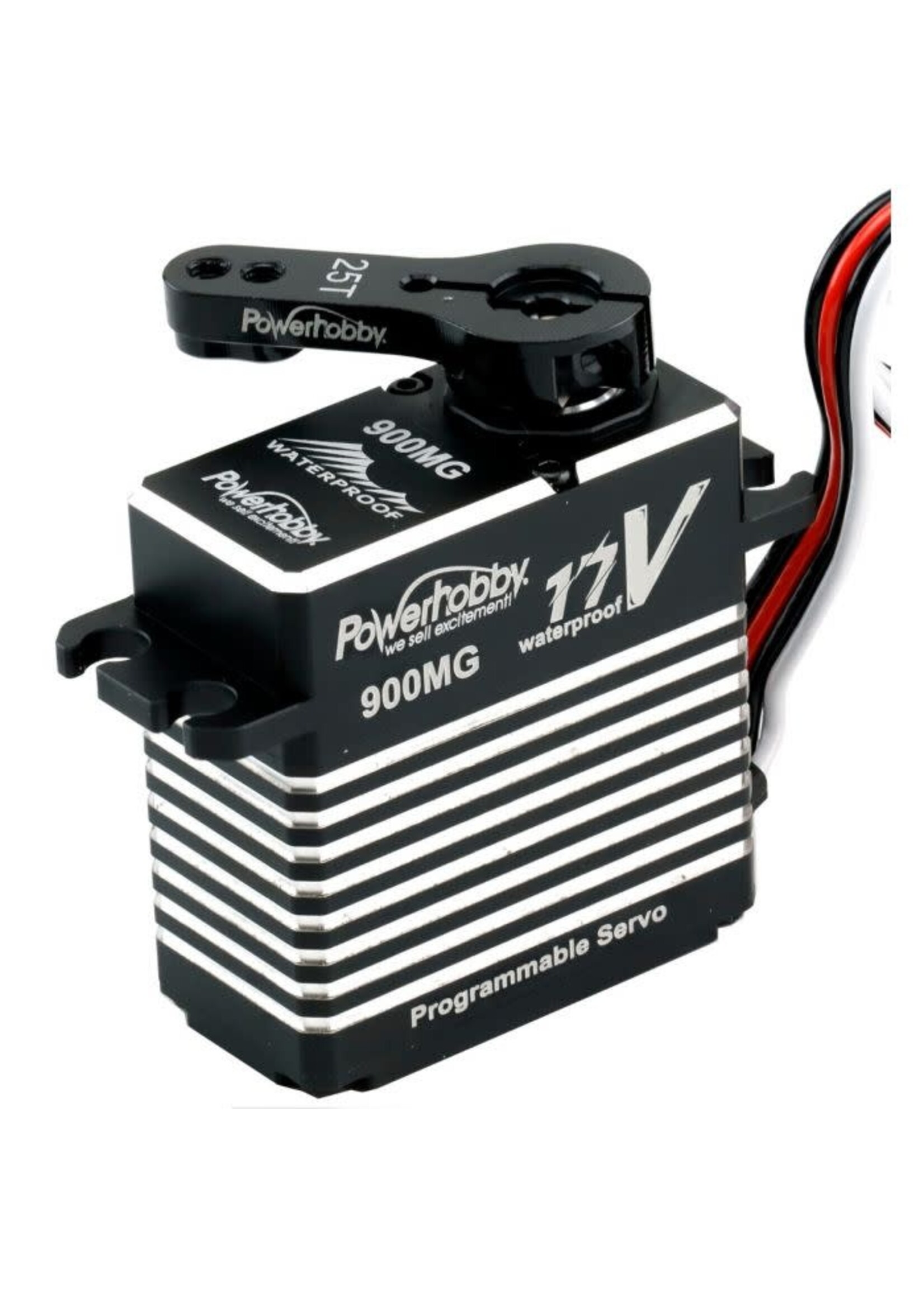

Powerhobby 900MG Aluminum Digital 4s (17v) Lipo Servo

Powerhobby 4S digital servo features 66kg-cm ultra torque, 0.100sec lightning Speed, and 4S lipo battery directly high voltage application. Fully upgrade the servo cable to 4pin wear-resistant wire, neat wiring and much more reliable for driving. Enhance the heat dissipation design, so that we can ensure the brushless motor can work well. With smooth operation, incredible efficiency, and low power consumption, make it a perfect match for those who demand the very best for their 1/8, 1/10 Crawler Cars, Truggy, Buggy, on or off road application.

Feature

* High Precision Japan Fanuc CNC Machined Cooling Case

* 16.8V Wide Voltage Special Design for 4s LiPo Operation

* Smoother 3 Ball Bearings and Robust Steel Gears

* High Accuracy Magnetic Sensor Waterproof IP67

* Good Performance Long Life Span Brushless Motor

* Fully Upgraded 4PIN Wear-Resistant Wire

* Superior Servo Ideal For 1/10, 1/8 Scale Cars, Boats, Airplane, Even Medical Equipment and Robot

Programmable ( required Powerhobby USB )

Specification

Operating Voltage: 7.4-17 V

Operating speed: 0.130sec/60° @ 12.0V

Operating speed: 0.115sec/60° @ 14.4V

Operating speed: 0.108sec/60° @ 16.0V

Operating speed: 0.100sec/60° @ 16.8V

Stall Torque: 46 kg-cm (639 oz-in) @ 12.0V

Stall Torque: 55 kg-cm (764 oz-in) @ 14.4V

Stall Torque: 62 kg-cm (861 oz-in) @ 16.0V

Stall Torque: 66 kg-cm (917 oz-in) @ 16.8V

Gear: Steels

Motor: BLS

Size: 40*20*41.5mm (1.57 x 0.78 x 1.63 in)

Weight: 88.5g

Connector Wire: TYU+JST 300 mm / 22AWG
