Innovative new features:
Traxxas Velineon VXL8s ESC, voltage, current and temperature LEDs
High-current BEC output
Fuse protected battery direct power bus for future accessories
Max Duty Drivetrain with new high-strength steel gears
Larger module ring and pinions, impact absorbing Cush Drive
Larger diameter driveshafts and larger main bearings
Torque Biasing Center Drive improves front and rear power distribution and is tuned to provide instant wheels-up punch off the line
Rear Wheelie Bar
Includes:

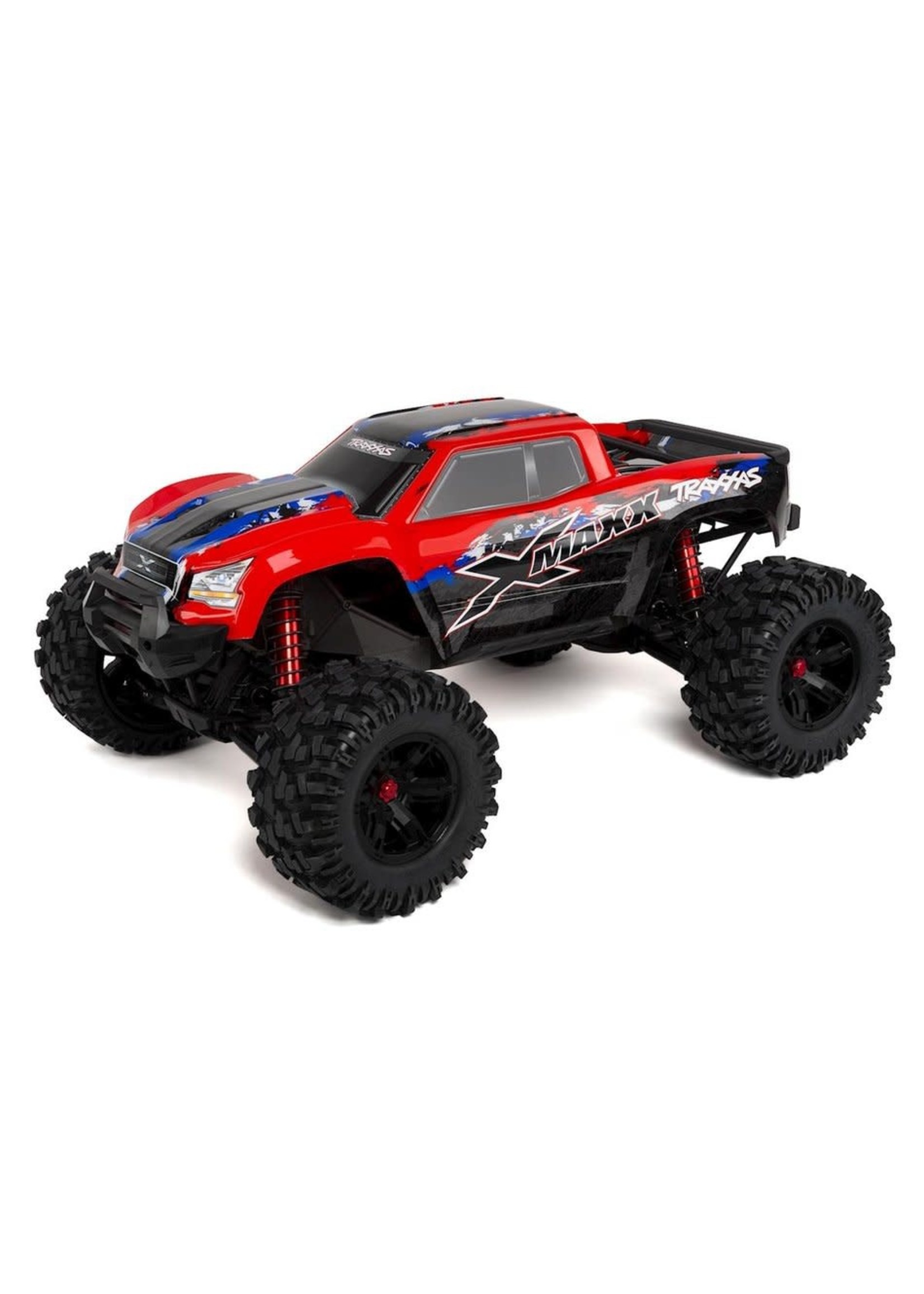

RTR X-Maxx 8S Truck with Brushless Motor
Radio
ESC
Painted Body
Quick Start Guide
Maintenance Tools
Requires:
Two 4S LiPo 5000mAh or greater batteries
Battery charger that’s compatible with selected LiPo batteries
Four AA Cells for transmitter
LiPo Charging Bag
Features:
Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine-tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
Chassis: Composite nylon tub, modular design provides easy access to critical components, lower front and rear skids and integrated nerf bars for front, rear and side impact protection, rear wheelie bar Drive Four wheel shaft drive, Max Duty drivetrain with new high-strength precision steel gears, new ring and pinions use a larger module and special alloys, new impact absorbing Cush Drive handles massive torque and replaces the slipper clutch new Torque-Biasing Center Drive with cast alloy construction is tuned for instant punch off the line, and improved front and rear power distribution
Motor Mount: Cradle design eliminates flexing, keyed pins lock gear mesh in place
Radio: 2.4GHz TQi transmitter with 5-ch micro TSM telemetry ready receiver, BEC voltage and motor temperature sensors installed, self-righting button, built-in fail safe, can be equipped with the TQi Docking Base along with the iPhone, iPad or iPod touch* to create a graphical user interface for the vehicle Traxxas Link TQi Wireless Module required (not included)
Steering Servo: High-torque with aluminum heat sink, double shear bearing supported servo horn
Electronic Speed Control: Velineon VXL-8s 8S LiPo compatible
Transmission: Single speed
Differentials: Sealed hardened steel bevel, oil filled, limited slip
Battery Retention System: Integrated into chassis top brace for greater rigidity, eliminates body clips or hook and loop straps, adjustable for different batteries
Body: ProGraphix painted and trimmed, red version may include blue parts
Body Mount System: Quick one-hand body installation and removal, pivoting rear latch mechanism eliminates body posts and clips

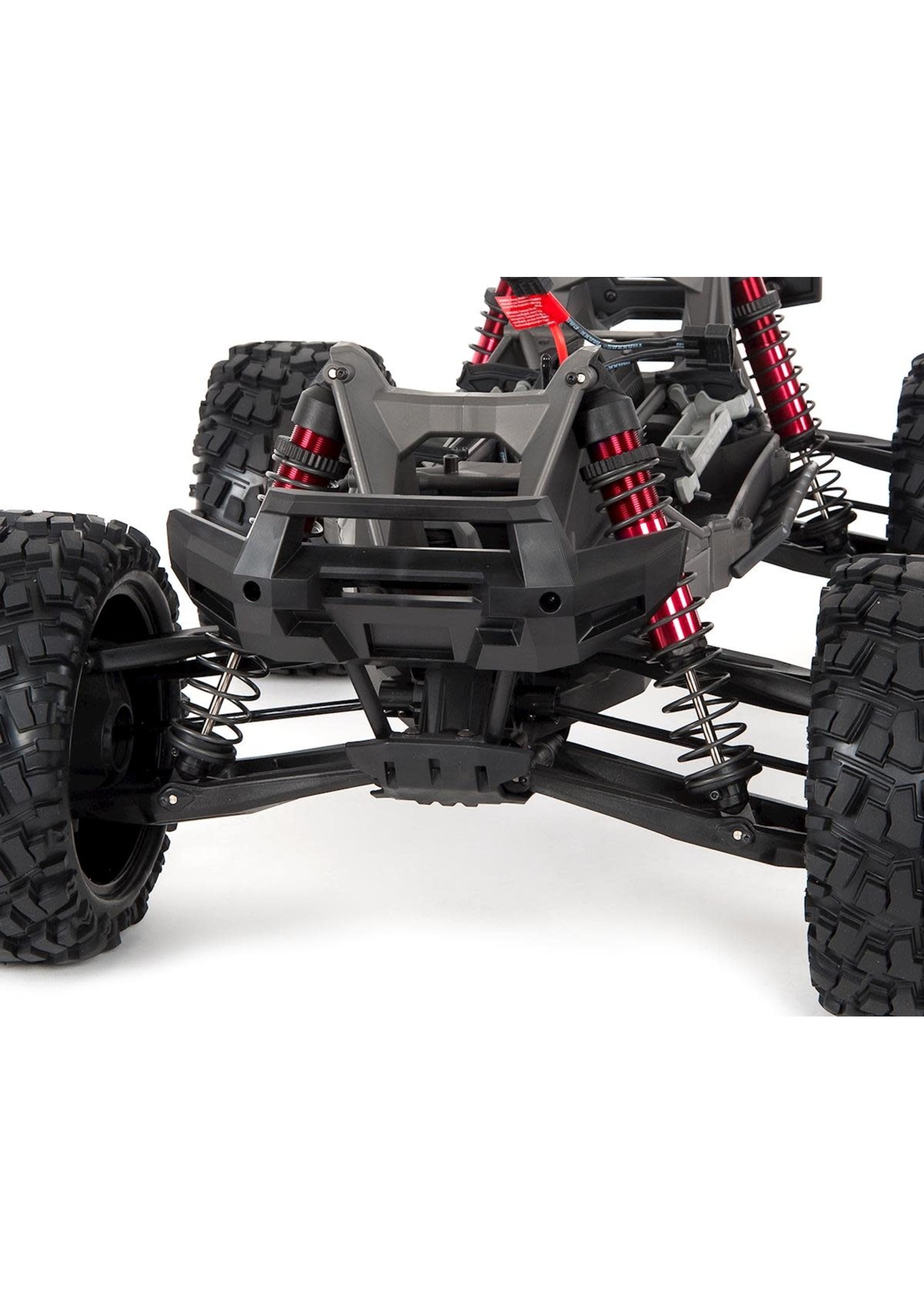

Suspension: Captured high-strength steel pins, double sheer connections, adjustable roll center
Shocks: GTX aluminum bodied, oil-filled, integrated wiper seal keeps shafts clean reducing seal wear
Shock Towers: Composite plastic construction, also serve as carrying handles and level supports when vehicle is placed upside down
Tires: Aggressive all-terrain tread 8 x 4 x 4" foam inserts
Wheels: 3.4 x 5.7 inches (87 x 145mm), 17mm hexes
Steering: Bellcrank
Bumpers: Front and rear composite plastic with impact cushions behind each bumper to soften blows and add to durability
Ball Bearings: Sealed, full contact
Radio Box: Waterproof
Specs:
Vehicle
Length: 29.84" (758mm)
Front Track: 22.26" (540mm)
Rear Track: 20.66" (525mm) distance from outer edges of wheels measured side-to-side
Ground Clearance: 4" (102mm)
Weight: 19.1lbs (8.66kg)
Ride Height: 13.79" (350mm)
Overall Drive Ratio: 8.24
Wheelbase: 18.92" (480mm)
Shock Length: 7.4" (187mm)
Battery Tray Dimensions: 7.7 x 2 x 1.7" (197mm x 51.5mm x 44mm)
Body
Length: 27.7" (705mm)
Width: 9.2" (234mm) behind front wheels, narrowest point & 11" (279mm) at rear wheels, widest point
Height: 7.1" (180.3mm)
